Biovalmed

Produk Haier Biomedical

VACCINE REFRIGERATOR
WALK IN COLD ROOM
TRANSPORT COOLER
ULTRA LOW FREEZER
BIOMEDICAL FREEZER
COMBINED REFR. & FREZ.
PHARMACY REFRIGERATOR
BLOOD BANK REFR.
CENTRIFUGE
BIOLOGICAL SAFETY
LN2 STORAGE
OTHER BIOMEDICAL

VACCINE REFRIGERATOR/FREEZER

Ice-Lined Refrigerator

HBC-80

HBC-150

HBC-260

HBCD-90

Freezer ≤-10
Refrigerator: 2~8

Model
Suhu
Kapasitas
Dimensi Luar (mm)
Berat
HBC-80
2~8°C
80L
778*717*872
85 Kg
HBC-150
2~8°C
150L
1128*654*875
105 Kg
HBC-260
2~8°C
260L
1650*654*875
160 Kg
HBCD-90
Freezer ≤-10
Refrigerator: 2~8
Freezer: 32L
Refrigerator: 42L
1128*717*872
105 Kg

Vaccine & Icepack Freezer

HBD-116

HBD-286

Model
Suhu
Kapasitas
Dimensi Luar (mm)
Berat
HBD-116
-15~-25°C
121L
670*630*915
58 Kg
HBD-286
-15~-25°C
286L
1240*630*915
85 Kg

Solar Direct Drive Vaccine Refrigerator

HTC-40

HTC-110

Model
Suhu
Kapasitas
Dimensi Luar (mm)
Berat
HTC-40
2~8°C
40L
788*720*875
58 Kg
HTC-110
2~8°C
110L
1128*720*875
75 Kg

WALK IN COLD ROOM

Walk in Refrigerator

Walk in Freezer

Model
Kisaran Suhu Internal (°C)
Kapasitas (m³)
HRZK-20G
2~8°C
20 m³
HRZK-30G
2~8°C
30 m³
HRZK-40G
2~8°C
40 m³
HRZK-40D
-20°C
40 m³
HRZK-40GD
Cold Room: 2-8°C
Freezer Room: -20°C
Cold Room: 25 m³
Freezer Room: 15

TRANSPORT COOLER

Passive Cooling

HZY-5B

HZY-35B

Active Cooling

HZY-8Z

HZY-15Z

Model
Suhu
Kapasitas
Dimensi Luar (mm)
Berat

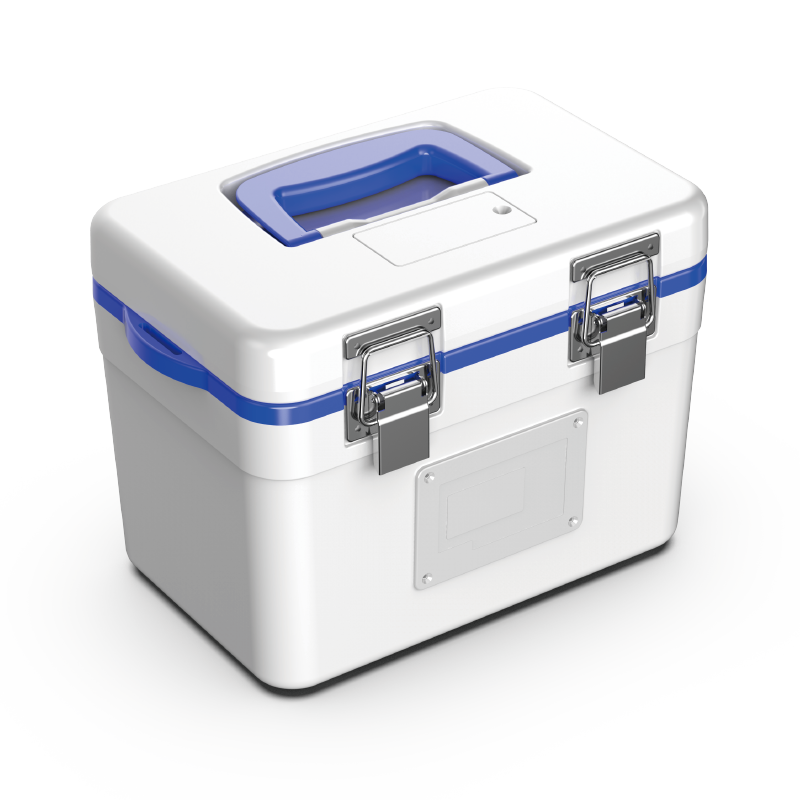

HZY-5B
2°C ~ 10°C
5L
285*186*200
2 Kg
HZY-35B
2°C ~ 10°C
35L
550*328*370
9 Kg
HZY-8Z
2°C ~ 10°C
8L
320*265*260
3.5 Kg
HZY-15Z
2°C ~ 10°C
15L
520*300*270
6 Kg

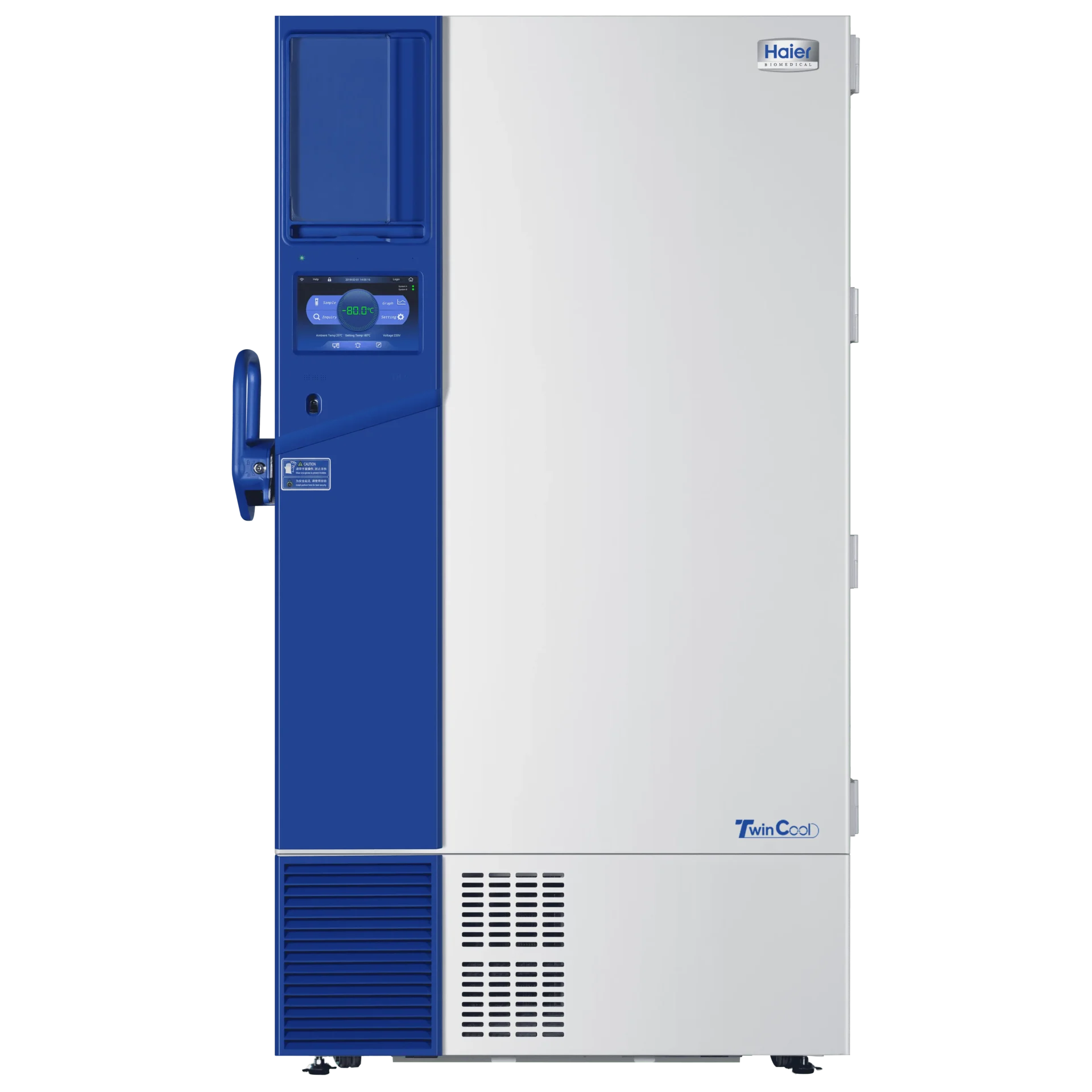

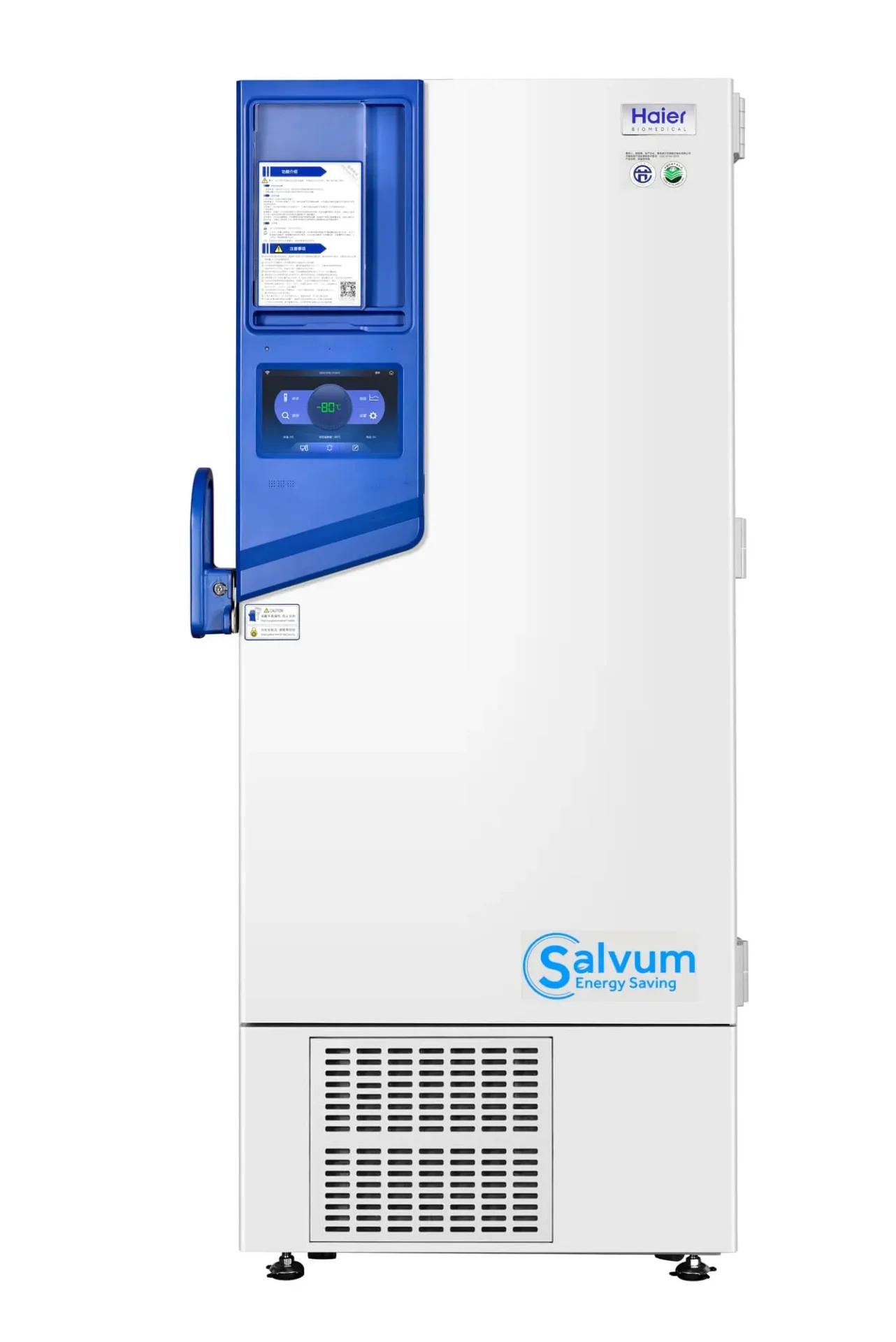

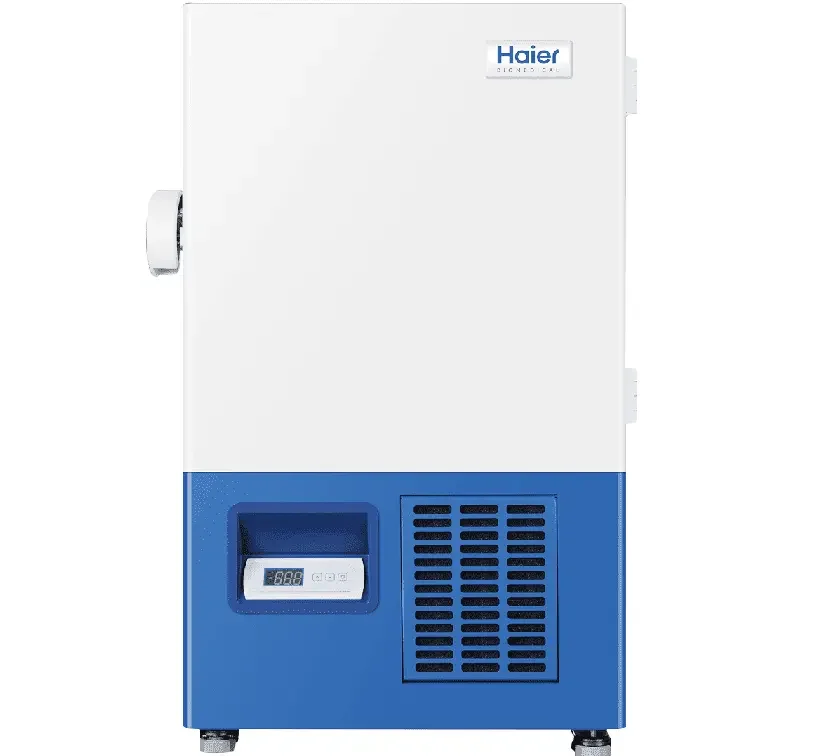

ULTRA LOW TEMPERATURE (ULT) FREEZER

-86°C ULT Freezer

DW-86W100J

DW-86W420J

DW-86L100J

DW-86L338J

DW-86L388J

Model
Suhu
Kapasitas
Dimensi Luar (mm)
Berat
DW-86W100J
-86°C
100L
769*825*1120
138 Kg
DW-86W420J
-86°C
420L
2130*870*1020
310 Kg
DW-86L100J
-86°C
100L
770*660*810
108 Kg
DW-86L338J
-86°C
338L
823*900*1871
238 Kg
DW-86L388J
-86°C
388L
830*980*1980
255 Kg

DW-86L490J

DW-86L578J

DW-86L628

DW-86L728J

DW-86L828J

Model
Suhu
Kapasitas
Dimensi Luar (mm)
Berat
DW-86L490J
-86°C
490L
860*900*1980
295 Kg
DW-86L578J
-86°C
587L
895*980*1960
300 Kg
DW-86L628
-86°C
628L
1035*900*1980
301 Kg
DW-86L728J
-86°C
728L
1041*980*1980
345 Kg

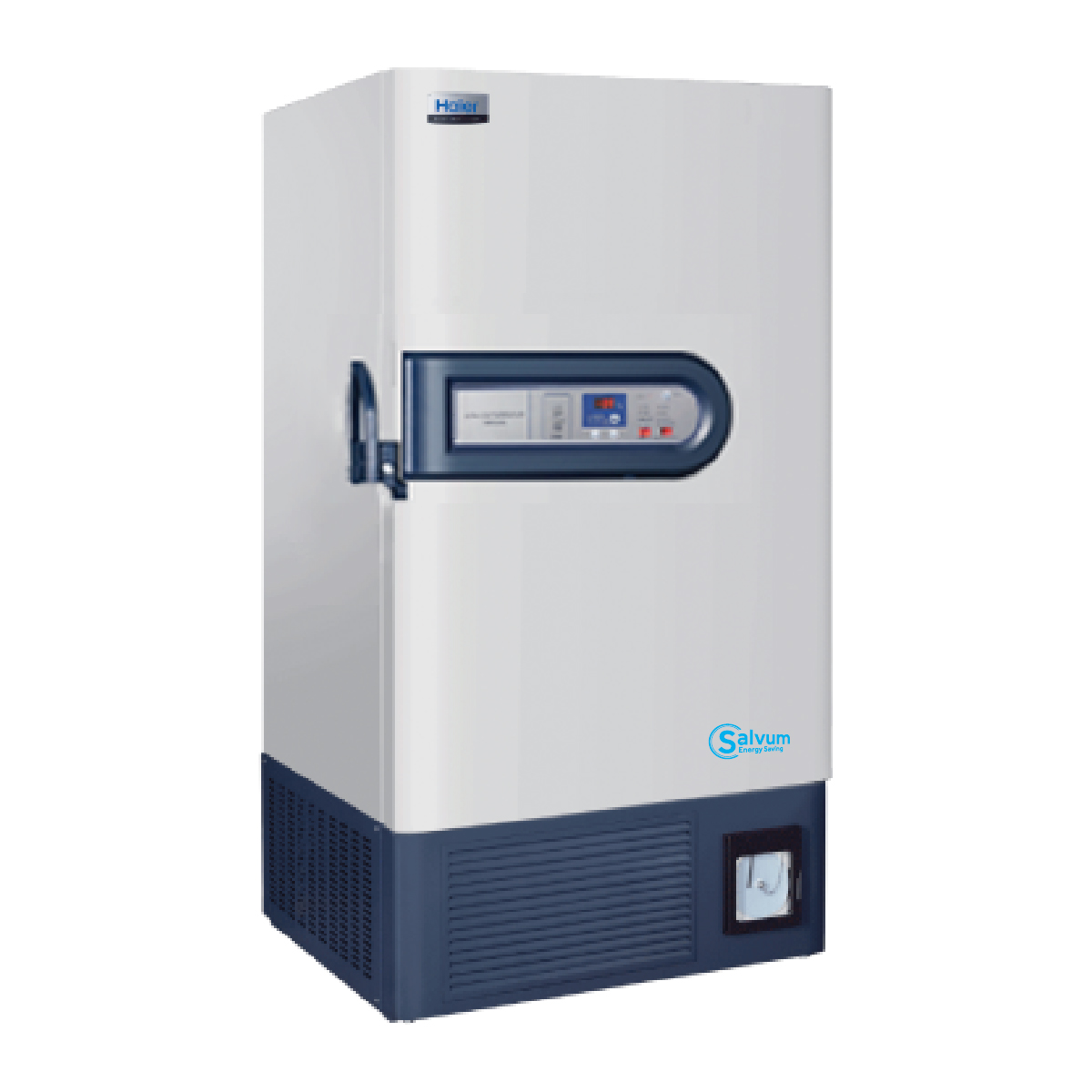

DW-86L828J
-86°C
828L
1145*980*1980
380 Kg

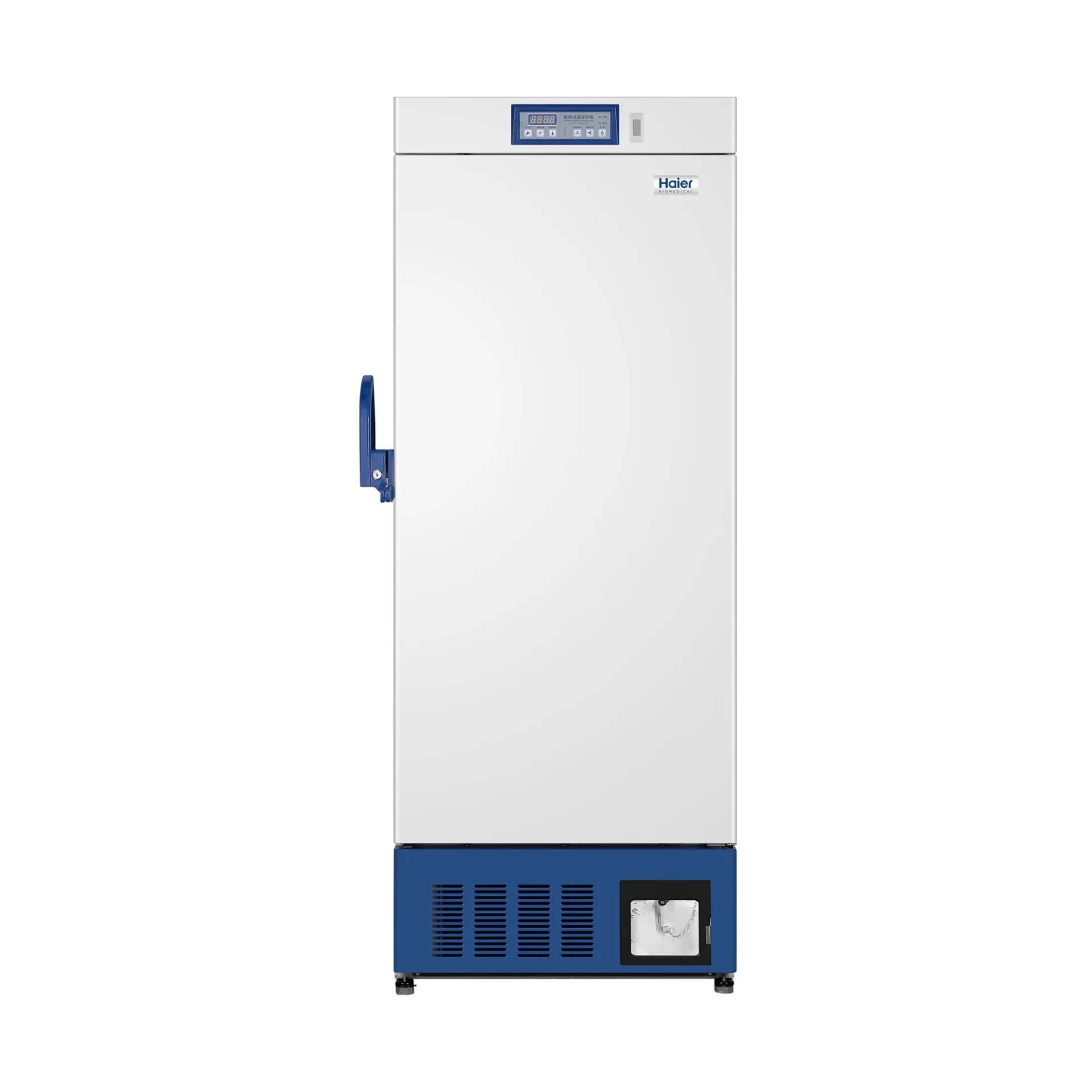

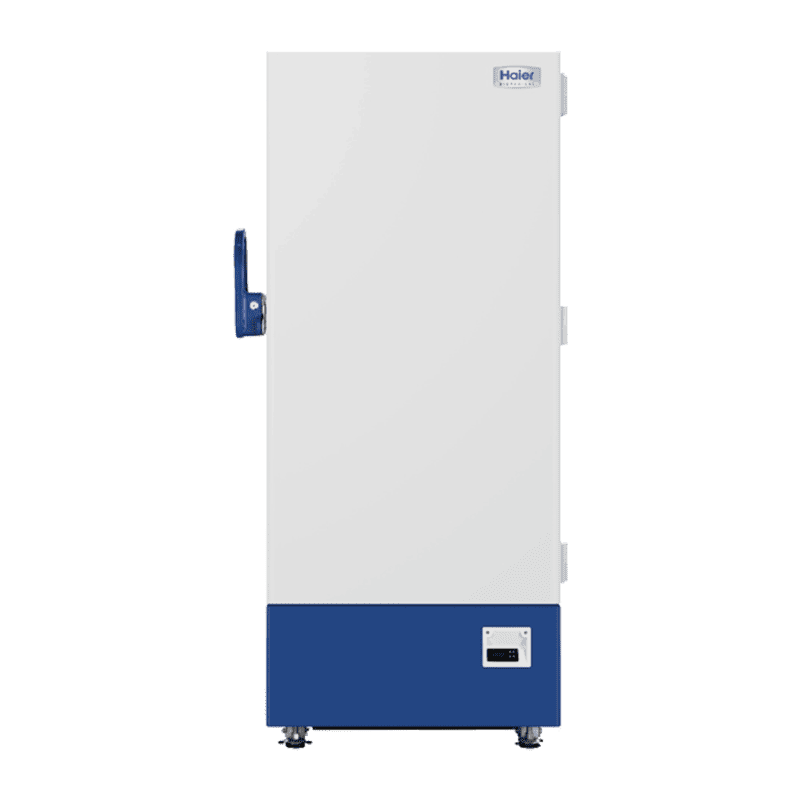

BIOMEDICAL FREEZER

-40°C Biomedical Freezer

DW-40L92

DW-40W100

DW-40L262

DW-40L278

Model
Suhu
Kapasitas
Dimensi Luar (mm)
Berat
DW-40L92
-40°C
92L
640*610*810
46 Kg
DW-40L100
-40°C
100L
685*650*810
43 Kg
DW-40L262
-40°C
262L
700*705*1665
88 Kg

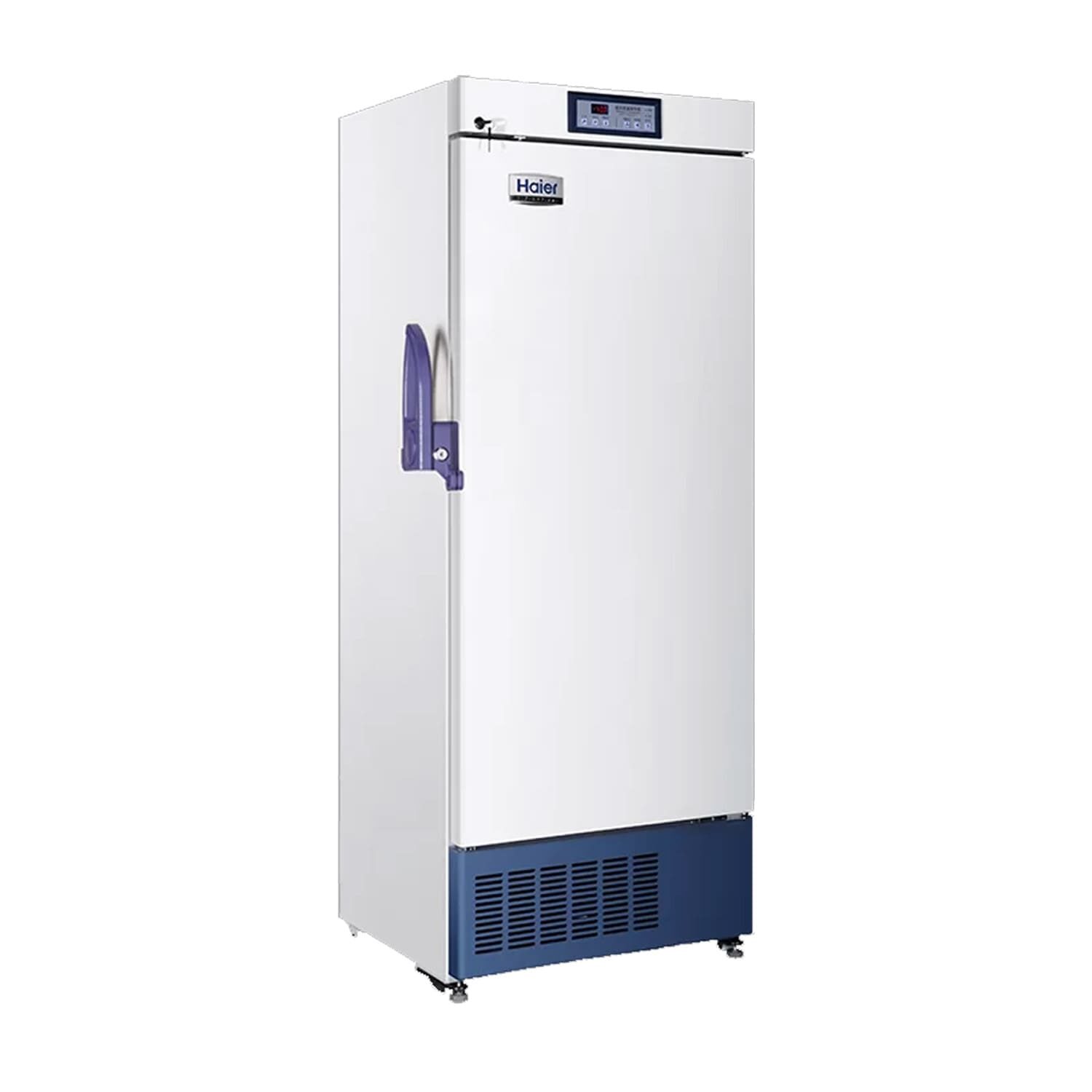

DW-40L278
-40°C
278L
770*710*1810
115 Kg

DW-86L578J

DW-40L348

DW-40L508

Model
Suhu
Kapasitas
Dimensi Luar (mm)
Berat
DW-40W255
-40°C
255L
1243*724*838
70 Kg
DW-40W348
-40°C
348L
790*845*1860
137 Kg
DW-40W508
-40°C
508L
940*845*1860
164 Kg

-30°C & -25 °C Biomedical Freezer

DW-30L420F

DW-25L92

DW-25L262

Model
Suhu
Kapasitas
Dimensi Luar (mm)
Berat

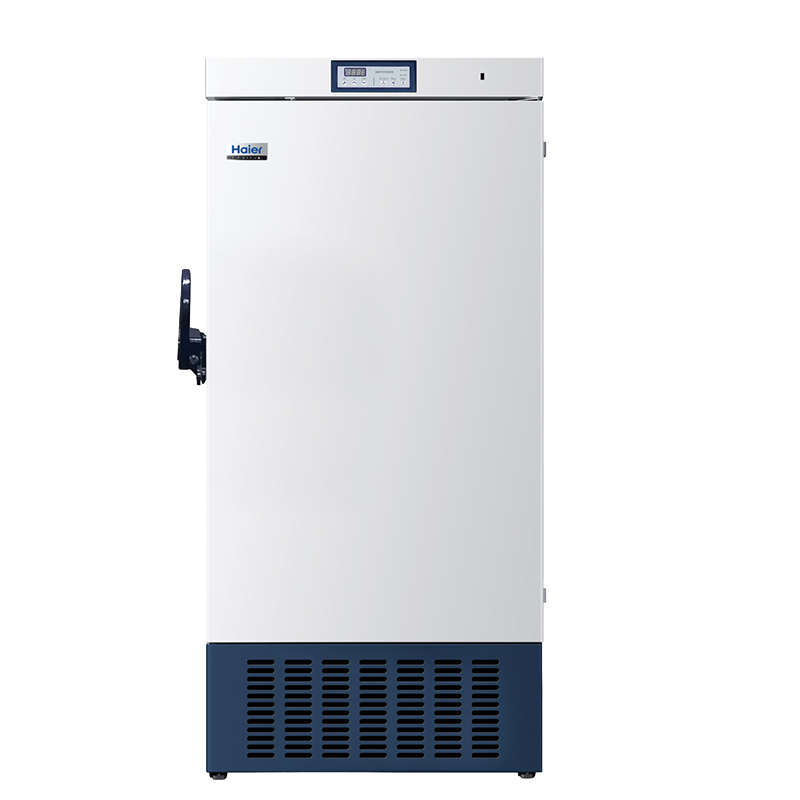

DW-30L420F
-30°C
420L
950*920*1900
195 Kg
DW-25L92
-25°C
92L
640*610*810
46 Kg
DW-25L262
-25°C
262L
700*705*1665
88 Kg

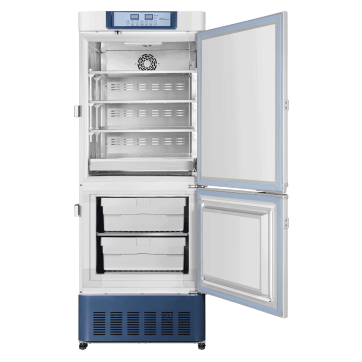

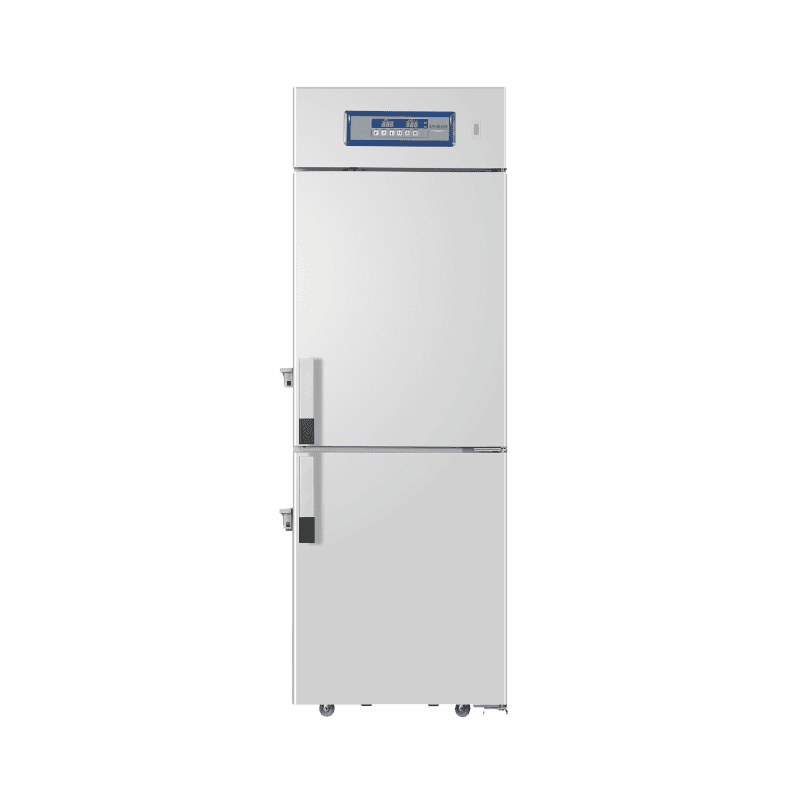

COMBINED REFRIGERATOR & FREEZER

HYCD-282

HYCD-282A

Model
Suhu
Kapasitas
Dimensi Luar (mm)
Berat
HYCD-282
Refr: 2°C to 8°C
Frez: -10°~-40 °C
282L
736*660*1810
145 Kg
HYCD-282A
Refr: 2°C to 8°C
Frez: -10°~-40 °C
282L
736*660*1810
145 Kg

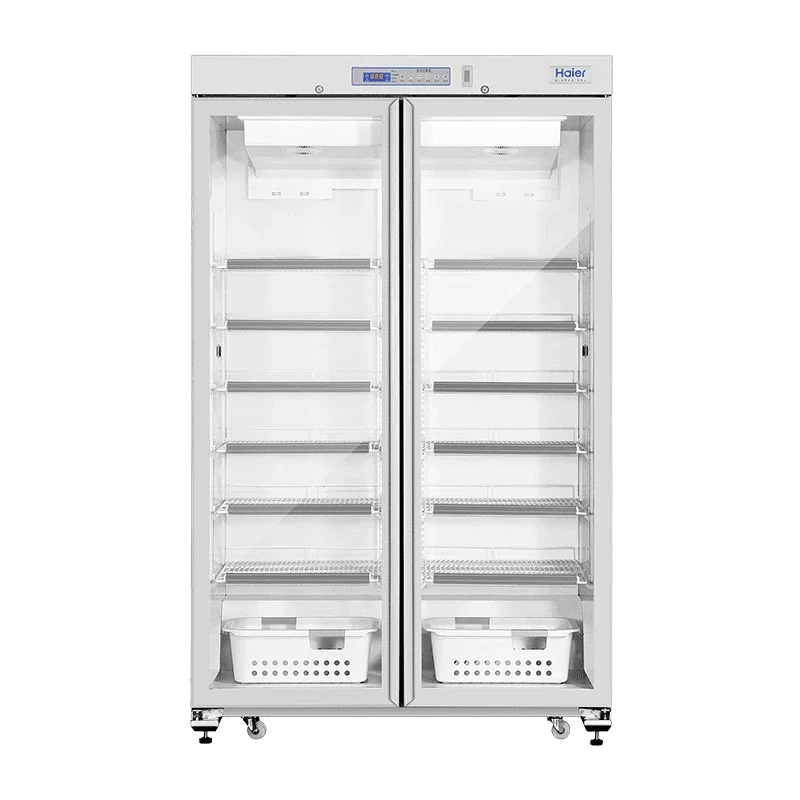

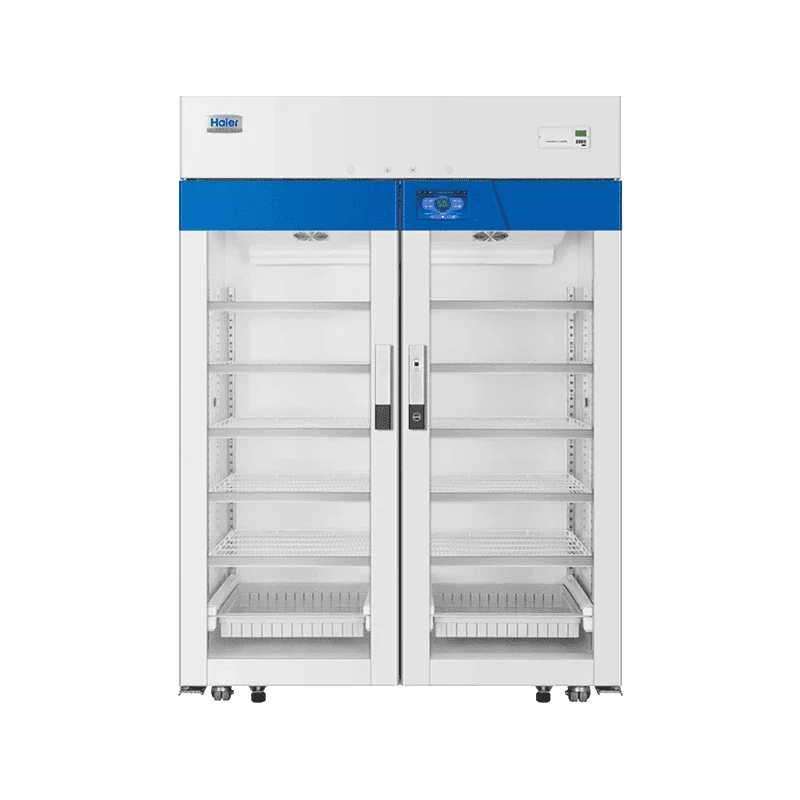

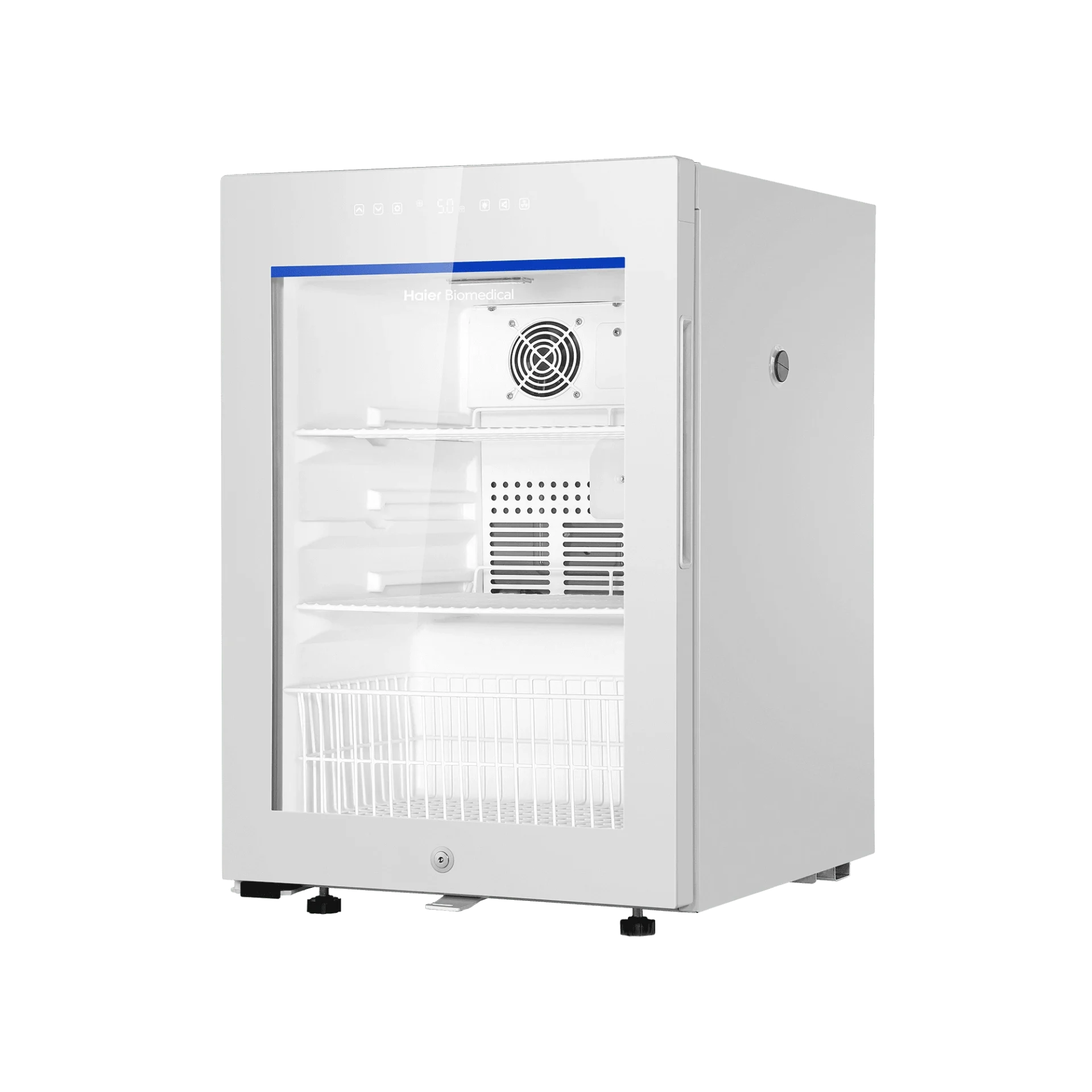

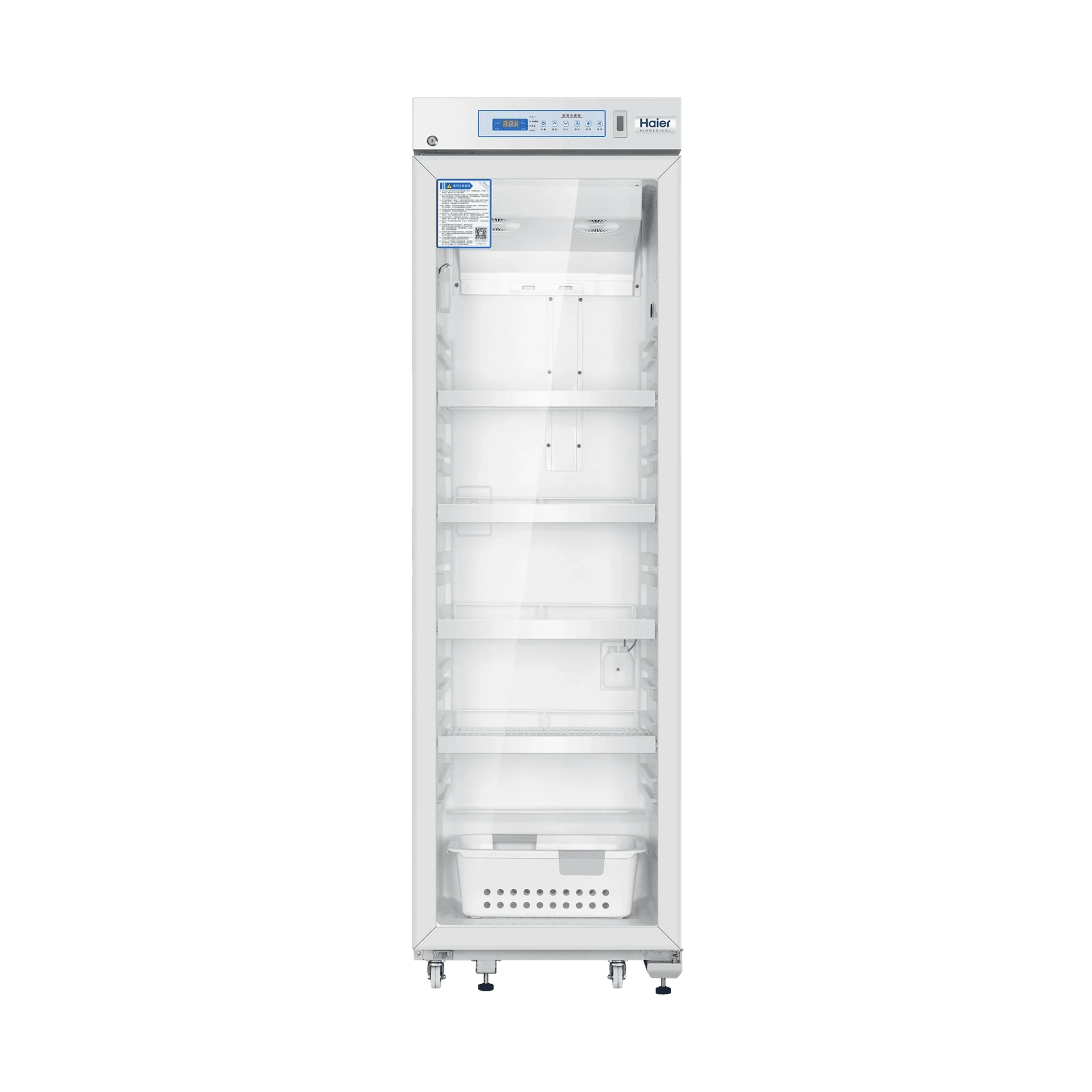

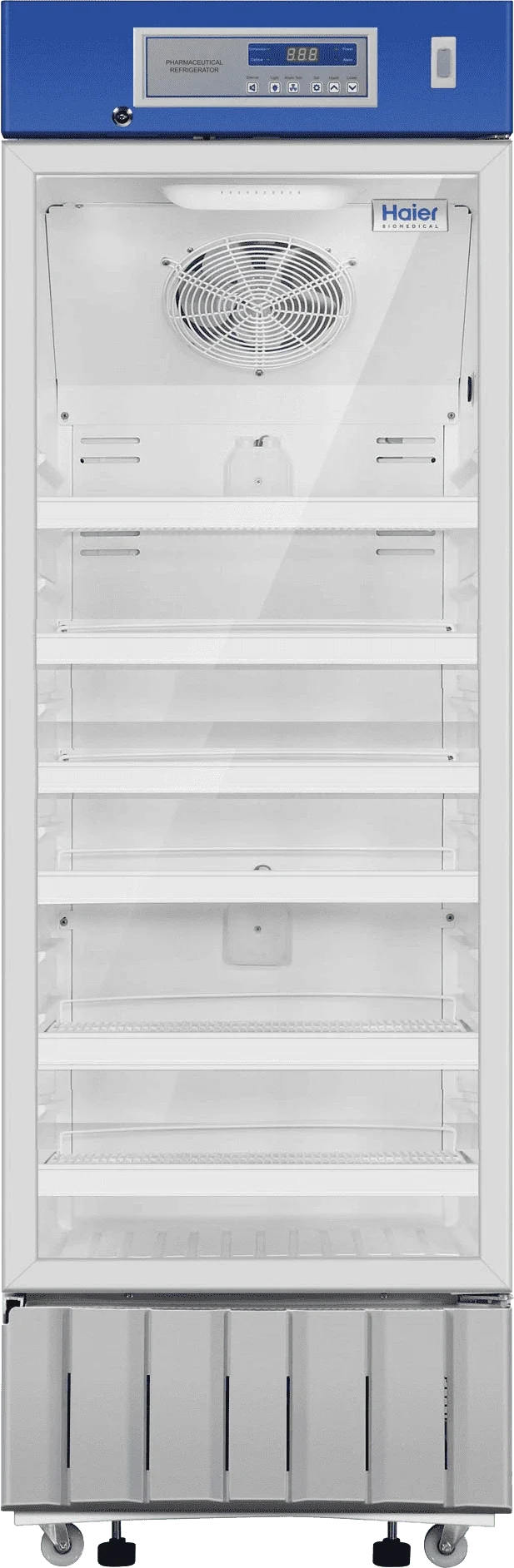

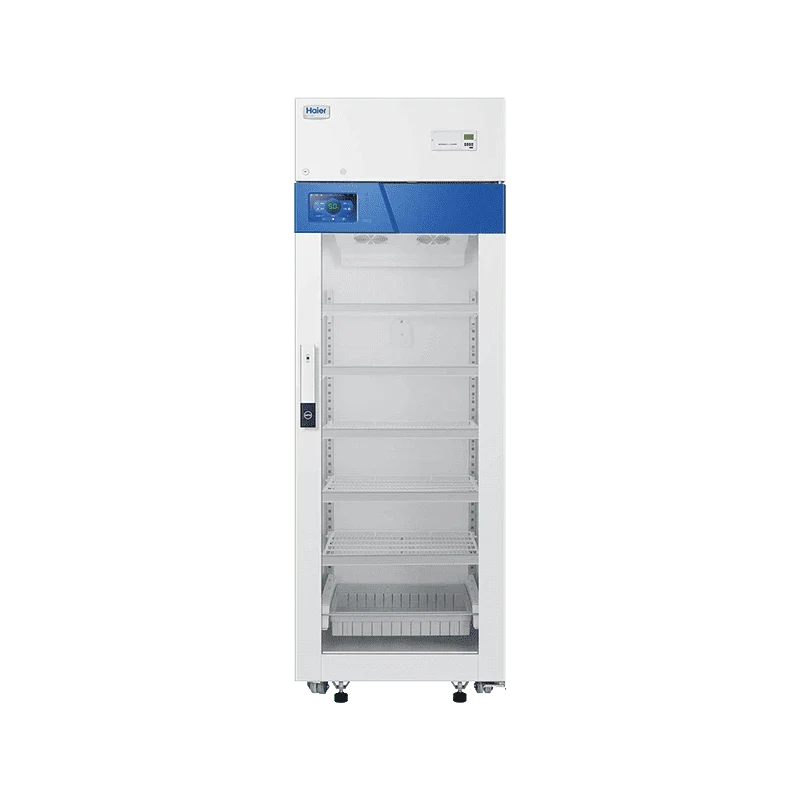

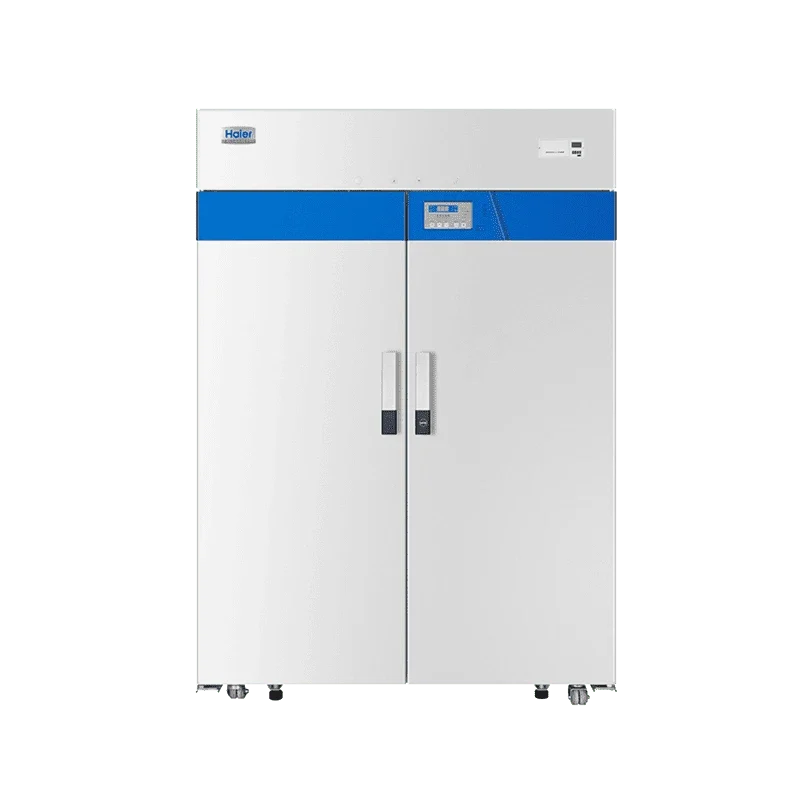

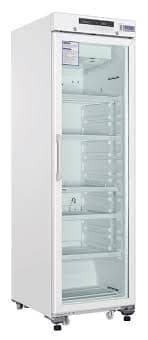

PHARMACY REFRIGERATOR

Pharmacy Refrigerator 2~8°C

HYC-68

HYC-68A

HYC-118

HYC-118A

HYC-290

HYC-390

Model
Suhu
Kapasitas
Dimensi Luar (mm)
Berat
HYC-68
2~8°C
68L
495*580*660
38 Kg
HYC-68A
2~8°C
68L
495*580*660
38 Kg
HYC-118
2~8°C
118L
597*635*810
41 Kg
HYC-118A
2~8°C
118L
597*635*810
46 Kg
HYC-290
2~8°C
290L
665*710*1665
105 Kg
HYC-390
2~8°C
390L
665*710*1965
116 Kg

HYC-390F

HYC-610

HYC-940

HYC-940F

HYC-1378

Model
Suhu
Kapasitas
Dimensi Luar (mm)
Berat
HYC-390F
2~8°C
390L
665*710*1965
106 Kg

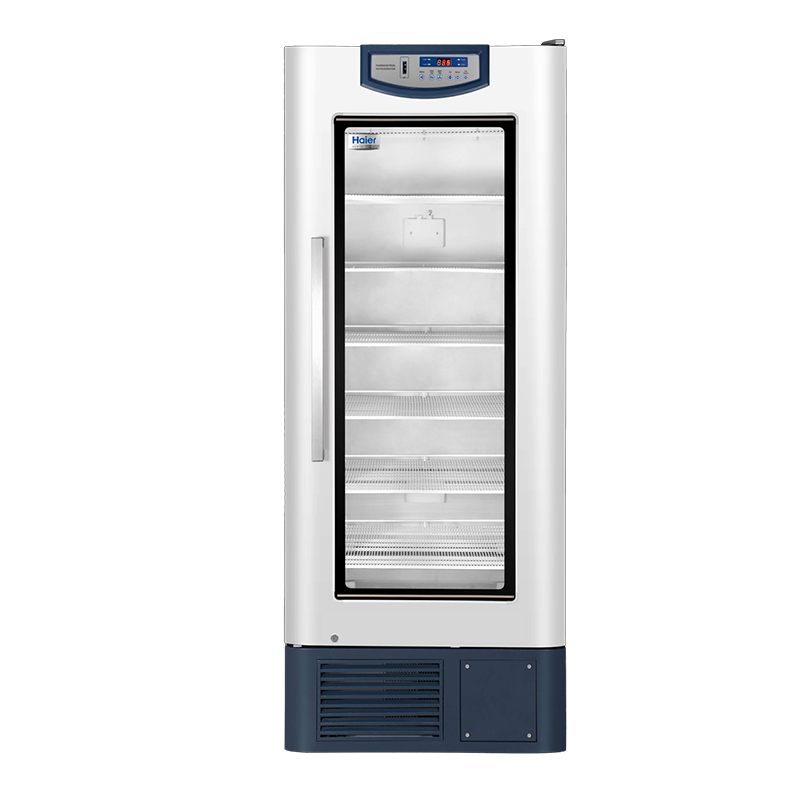

HYC-610
2~8°C
610L
780*840*1945
204 Kg
HYC-940
2~8°C
890L
1130*755*1980
227 Kg
HYC-940F
2~8°C
890L
1130*755*1980
207 Kg
HYC-1378
2~8°C
1378L
1440*950*1980
310 Kg

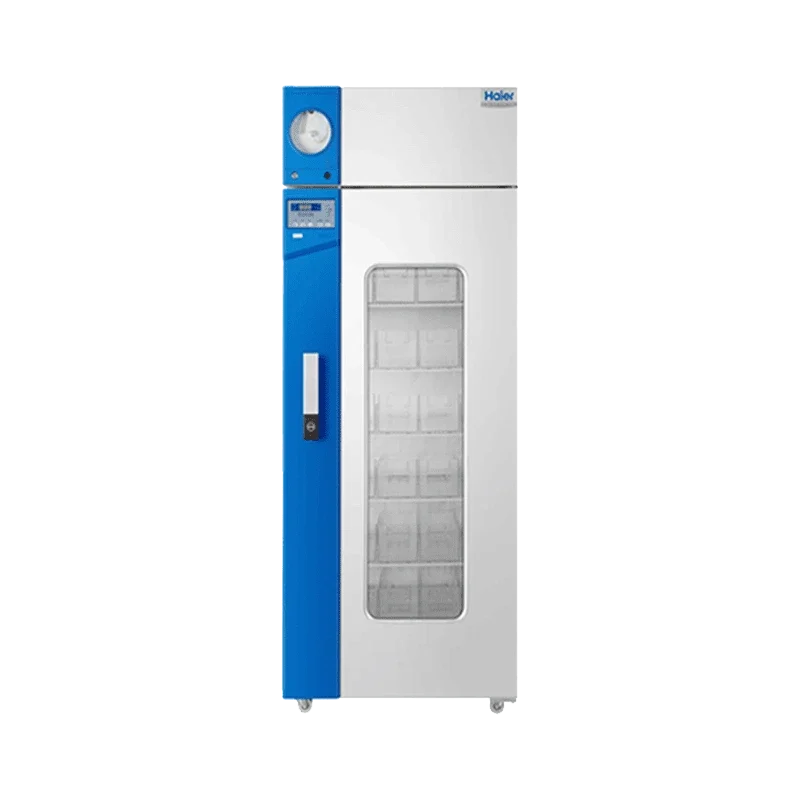

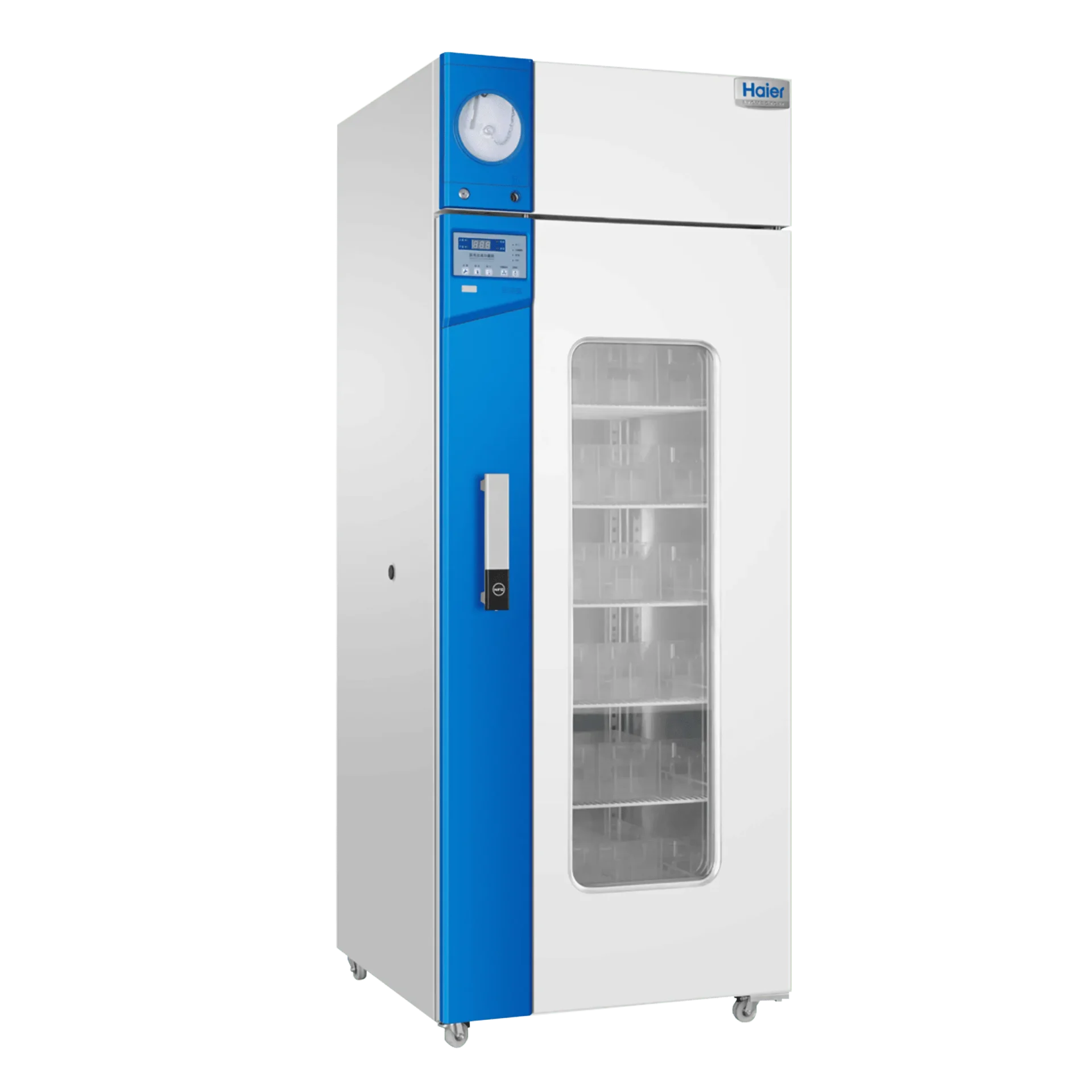

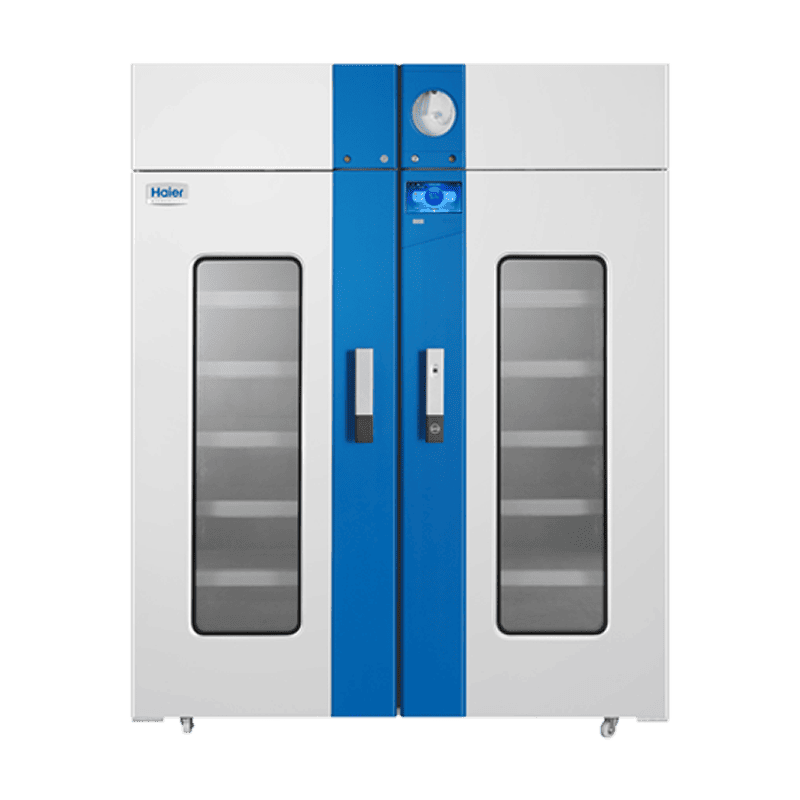

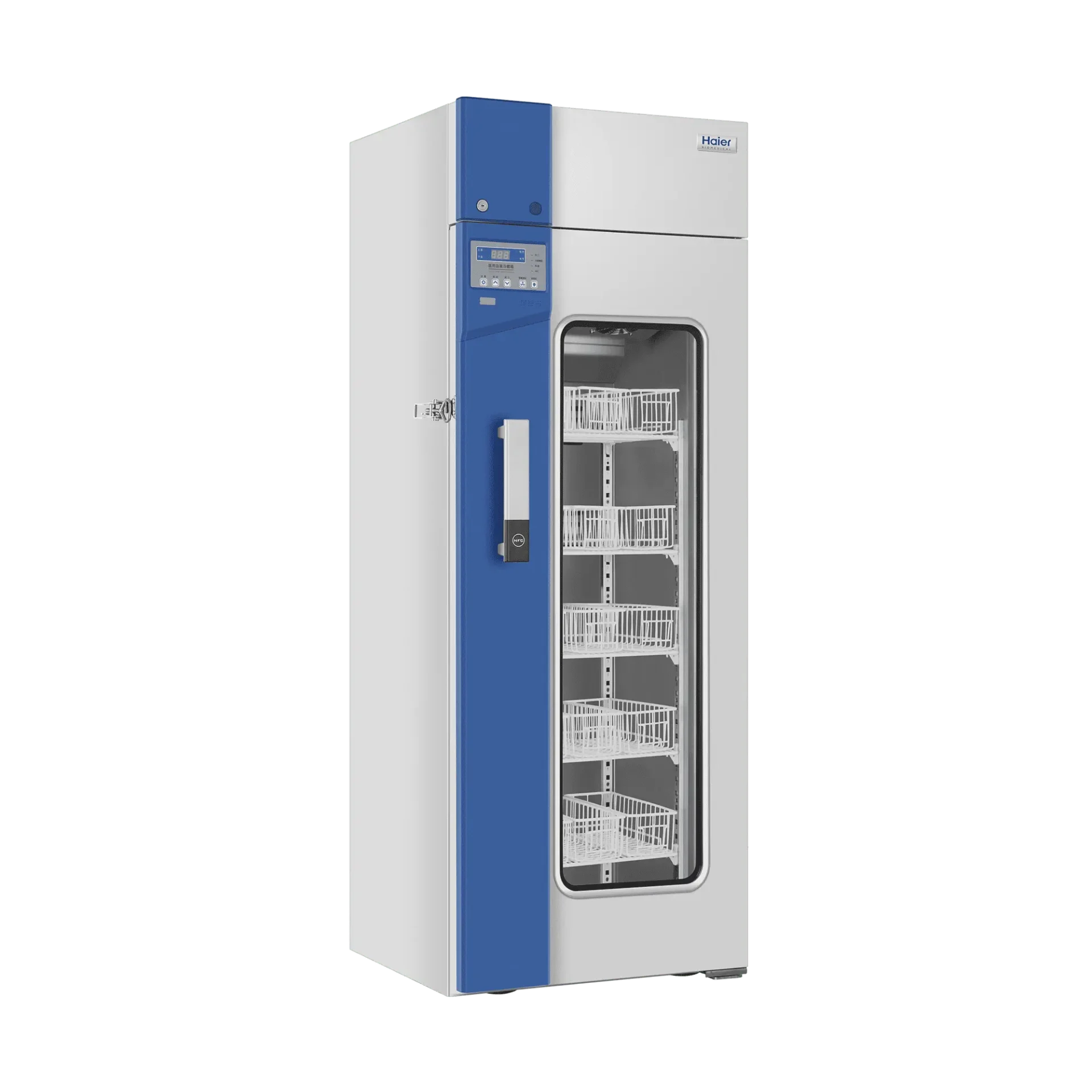

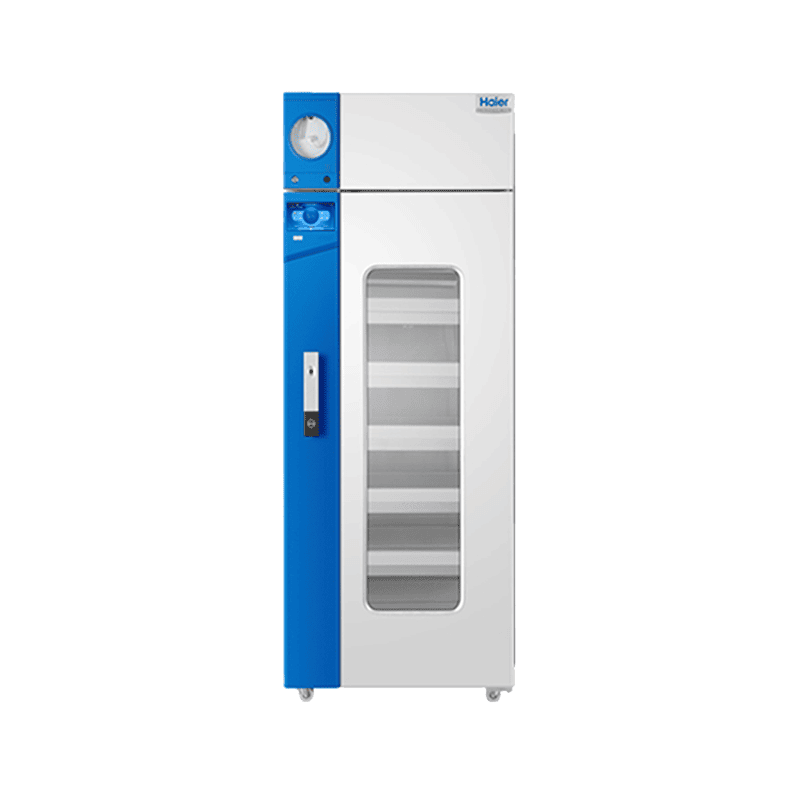

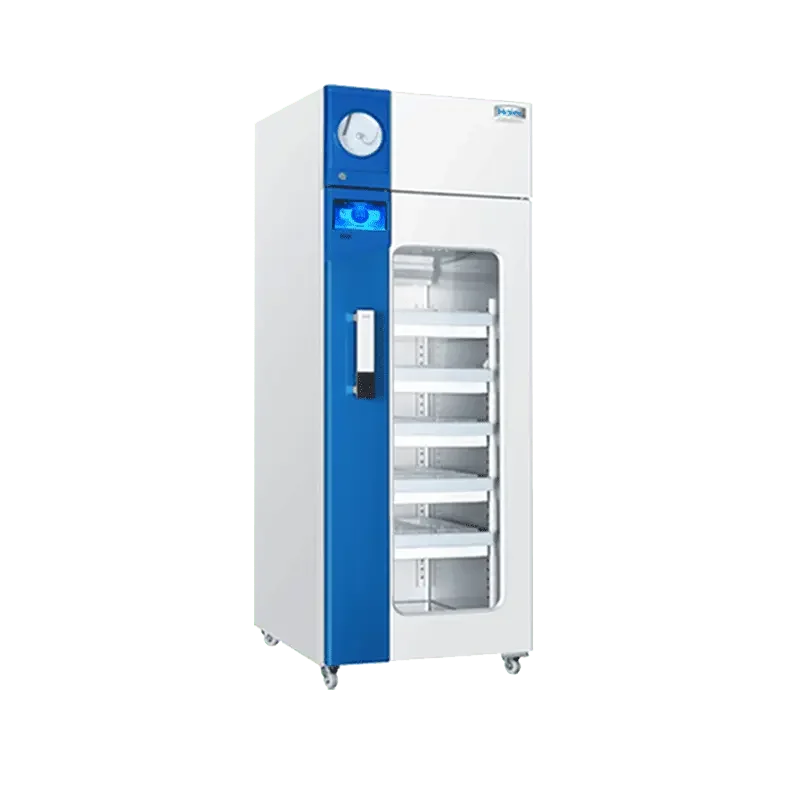

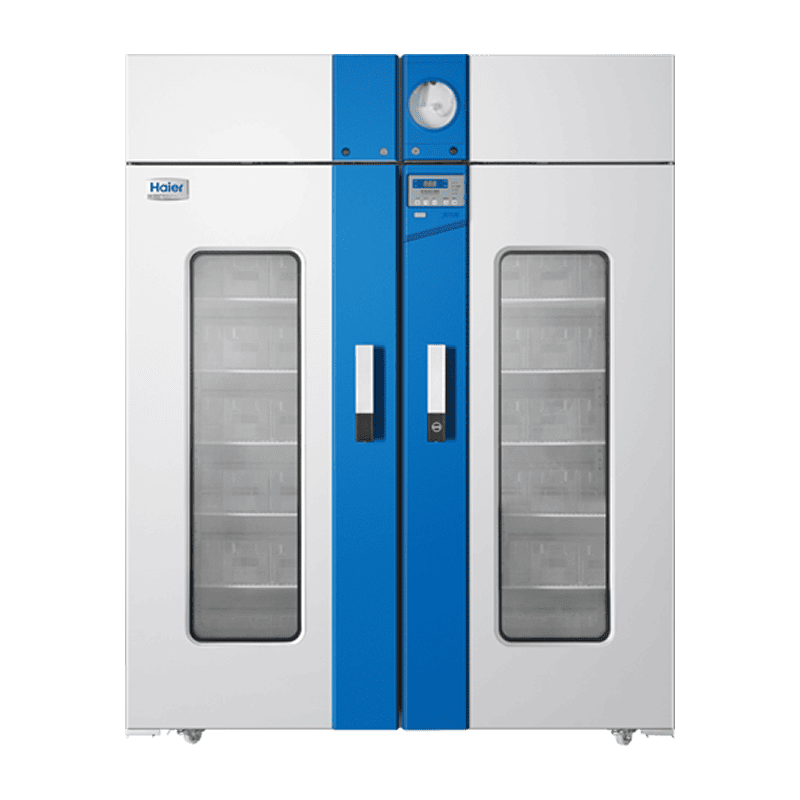

BLOOD BANK REFRIGERATOR

HXC-106

HXC-149

HXC-358

HXC-608

HXC-1308

Model
Suhu
Kapasitas
Dimensi Luar (mm)
Berat

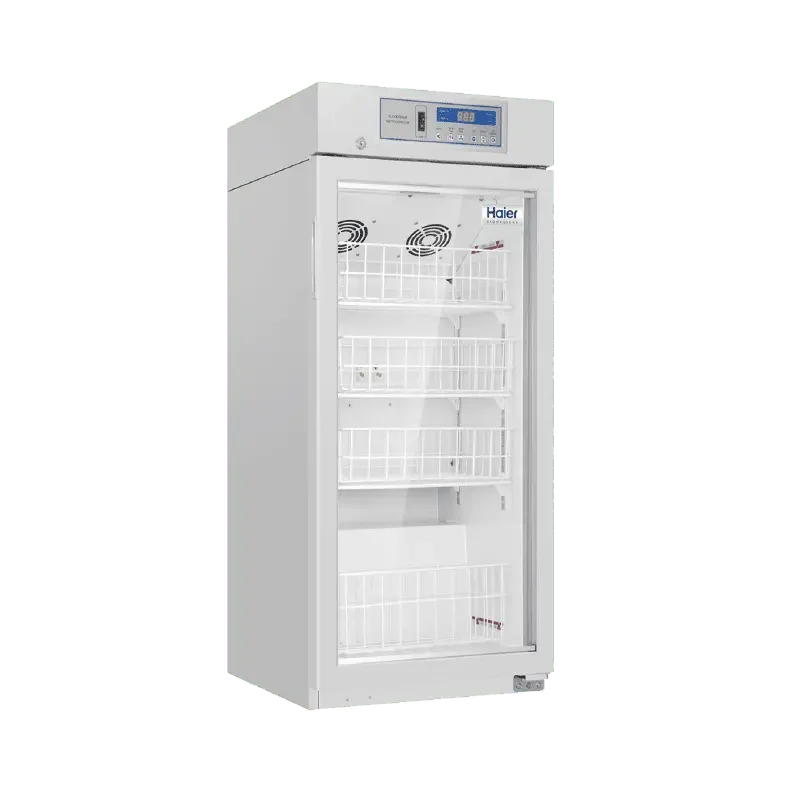

HXC-106
4°C
106L
500*514*1055
49 Kg

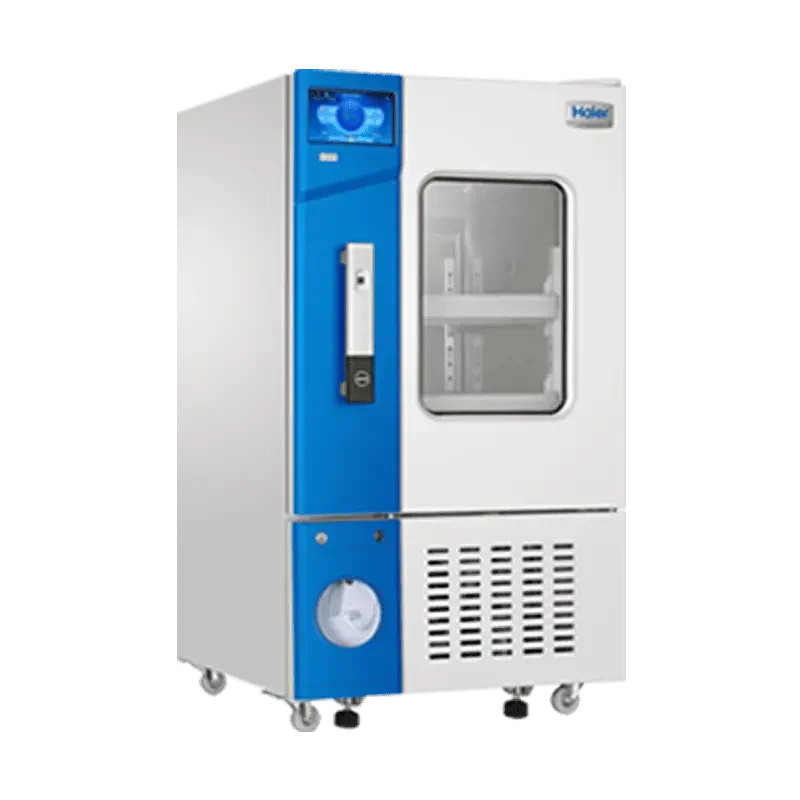

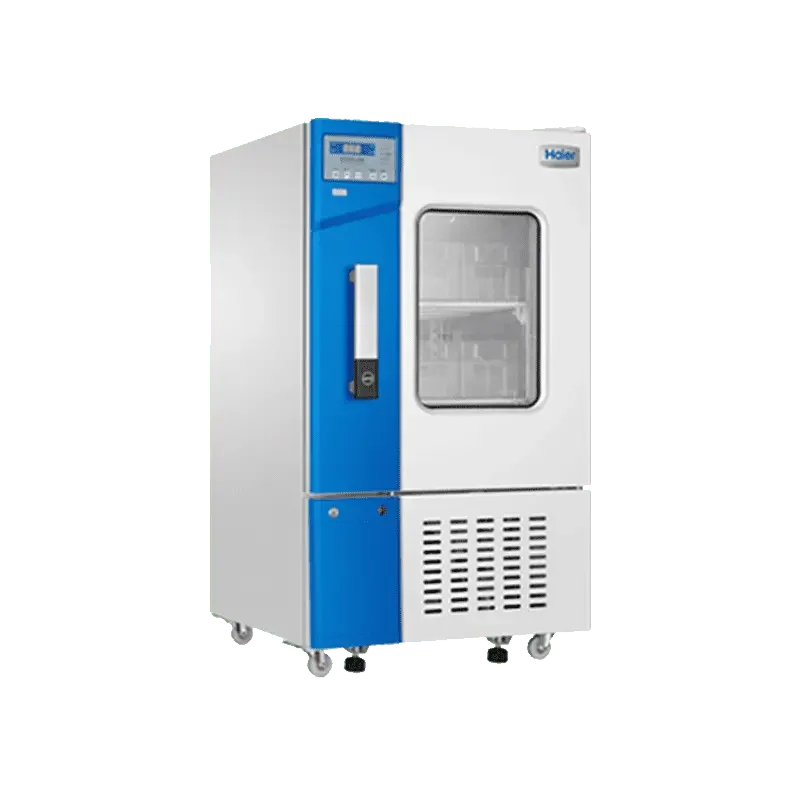

HXC-149
4°C
149L
625*820*1150
97 Kg
HXC-358
4°C
358L
720*690*1730
158 Kg
HXC-608
4°C
608L
780*840*1945
204 Kg
HXC-1308
4°C
1308L
1440*925*1980
310 Kg

CENTRIFUGE

Mini Centrifuge

LX-120T2Z

LX-50T2Z

Model
Max Speed
Capacity (ml)
Ext. Dimension (mm)
Weight
LX-50T2Z
5000 (rpm)
8*1.5/2.0
152*142*122
1.2 Kg
LX-120T2Z
12000 (rpm)
8*1.5/2.0
152*142*122
1.2 Kg

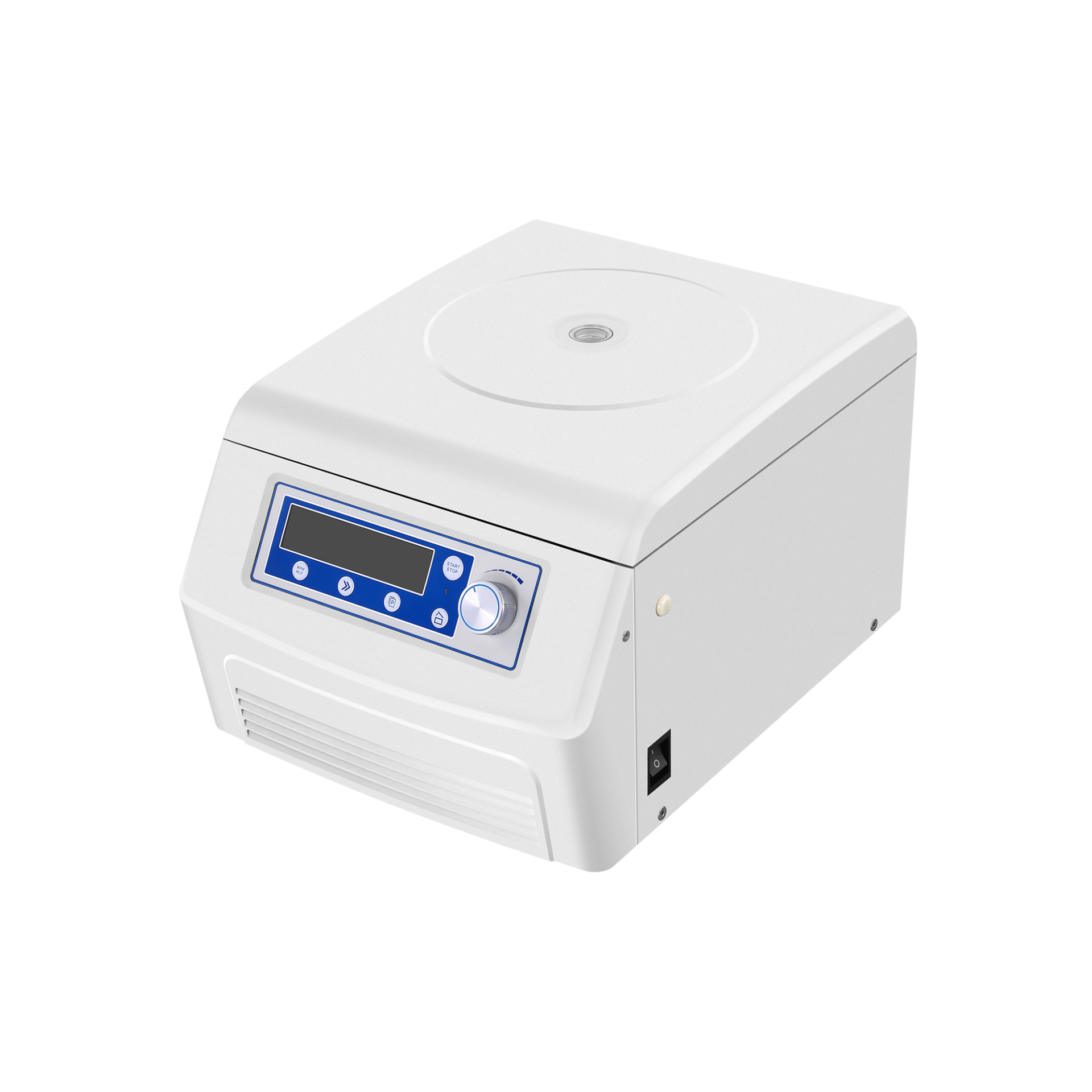

Benchtop Centrifuge

LX-165T2-J

LX-165T2R

LX-165T2R

LX-60T100-J

LX-60T500-J

LX-155T500R

Model
Max Speed
Capacity (ml)
Ext. Dimension (mm)
Weight
LX-165T2-J
16500 (rpm)
12*5.0
375*270*252
18 Kg
LX-165T2R
16500 (rpm)
12*5.0
340*625*248
34 Kg
LX-185T100R
18500 (r/min)
4*100
420*680*330
57 Kg
LX-60T100-J
6000 (rpm)
6*100
447*281*340
25 Kg
LX-60T500-J
6000 (rpm)
6*500
624*478*365
60 Kg
LX-155T500R
15500 (r/min)
6*500
658*673*358
112 Kg

Floor-standing

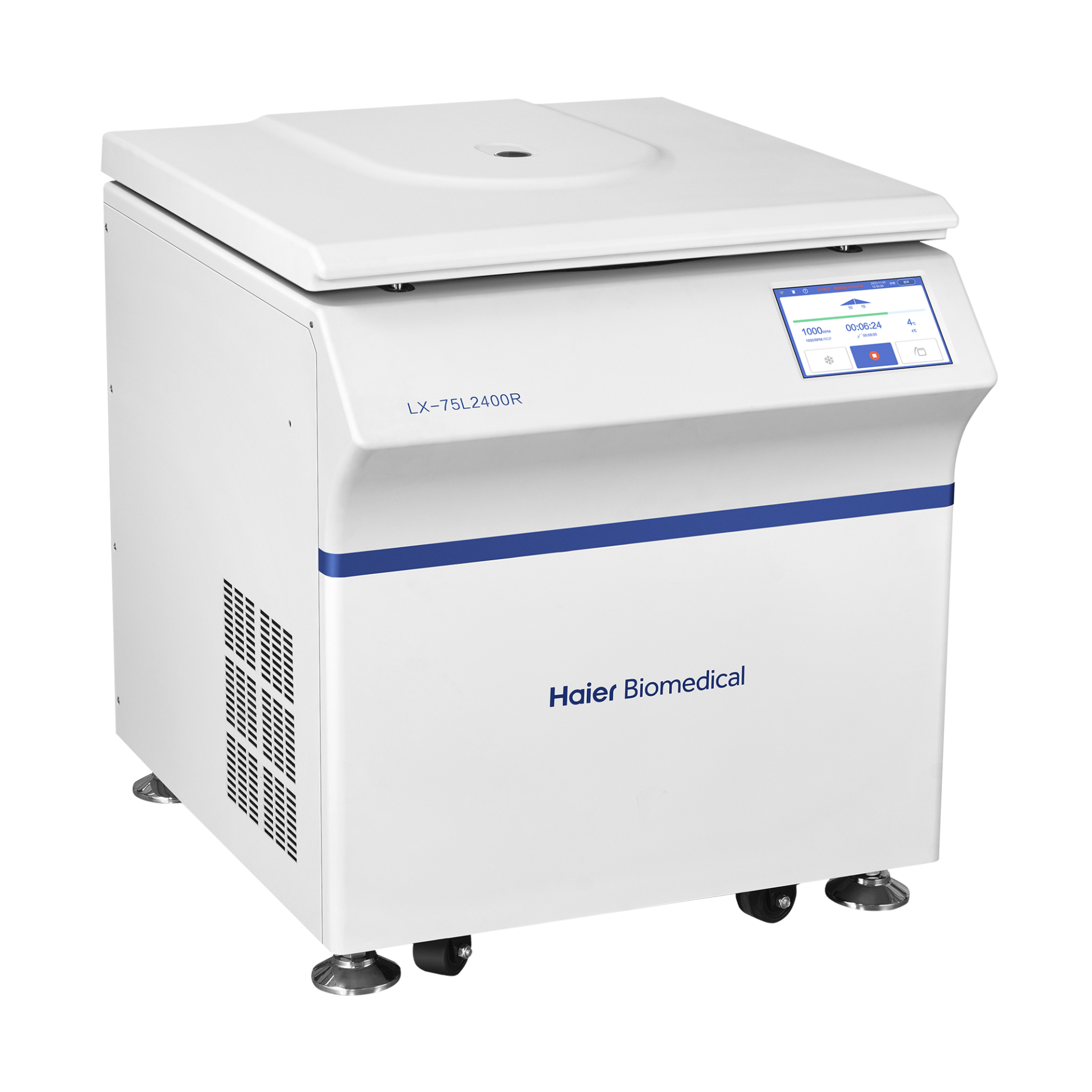

LX-75L2400R

Model
Max Speed
Capacity (ml)
Ext. Dimension (mm)
Weight
LX-75L2400R
7500 (r/min)
6*2400
900*1050*1020
670 Kg

BIOLOGICAL SAFETY CABINET

HR40-IIA2

HR40-IIB2

HR900-IIA2

HR1200-IIA2

Model
Sirkulasi Aliran Udara
Filter Utama
Dimensi Luar (mm)
Berat
HR40-IIA2
70% Downflow
30% Exhaust
ULPA/HEPA
1360*820*2200
258 Kg
HR40-IIB2
100% Exhaust
ULPA/HEPA
1360*820*2330
252 Kg
HR900-IIA2
70% Downflow
30% Exhaust
ULPA/HEPA
1080*845 (790)*2160
290 Kg
HR1200-IIA2
70% Downflow
30% Exhaust
ULPA/HEPA
1080*845 (790)*2160
320 Kg

LN2 STORAGE

Biobank Series for Large Scale Storage

YDD-350-326

YDD-850-465

YDD-1800-635

Model
LN2 Volume (L)
Inside Neck Diameter (mm)
Outside Diameter (mm)
Height (mm)
Full Weight (Kg)
YDD-350-326
350
326
875
1263
502
YDD-850-465
890
465
1190
1499
1160
YDD-1800-635
1880
635
1565
1662
2504

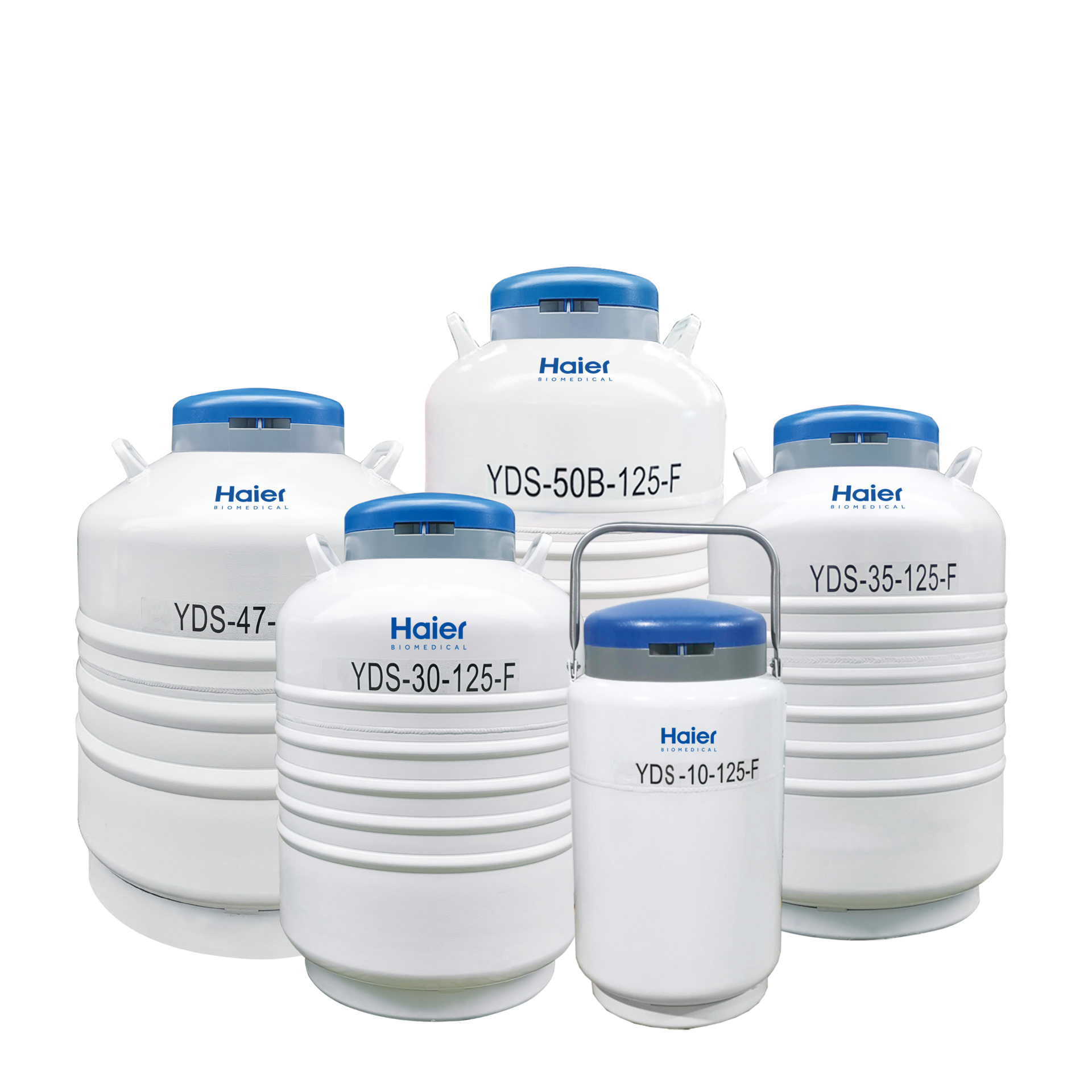

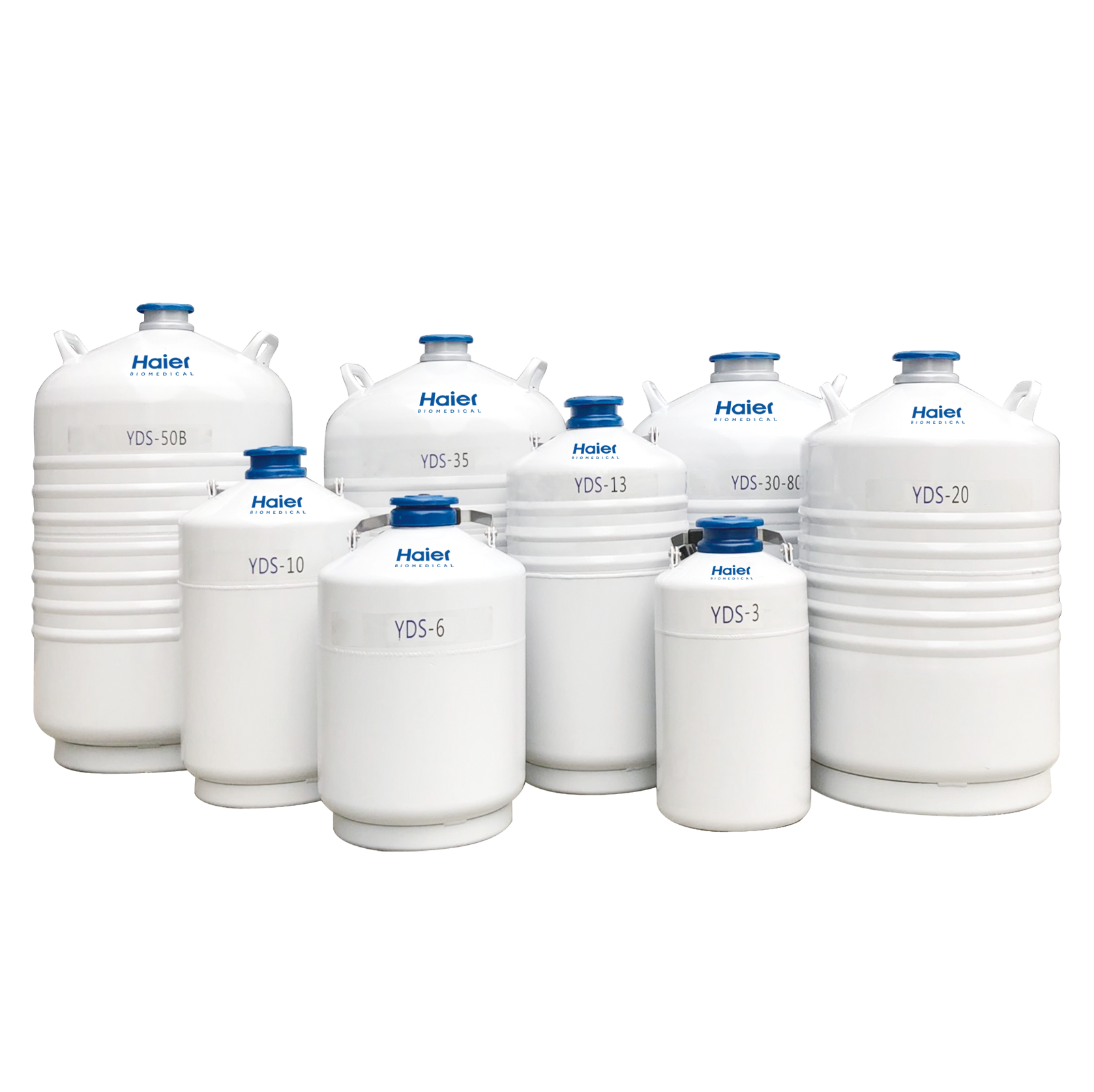

Small Sized Storage Series

Model
LN2 Volume (L)
Opening Diameter (mm)
Outside Diameter (mm)
Height (mm)
Full Weight (Kg)
YDS-10-125
10
125
300
625
15.1
YDS-30-125
31.5
125
462
704
38.9
YDS-35-125
35.5
125
462
748
21.9
YDS-47-127
47
127
508
718
30.7
YDS-50B-125
50
125
462
818
30.3

Medium Sized Storage Series

Model
LN2 Volume (L)
Opening Diameter (mm)
Outside Diameter (mm)
Height (mm)
Full Weight (Kg)
YDS-65-216F
65
216
681
712
80.8
YDS-95-216-F
95
216
681
774
112.4
YDS-155-216-F
155
216
681
846
132.8
YDS-140-216-F
145
216
681
946
157.3
YDS-175-216-F
175
216
681
1060
198.5

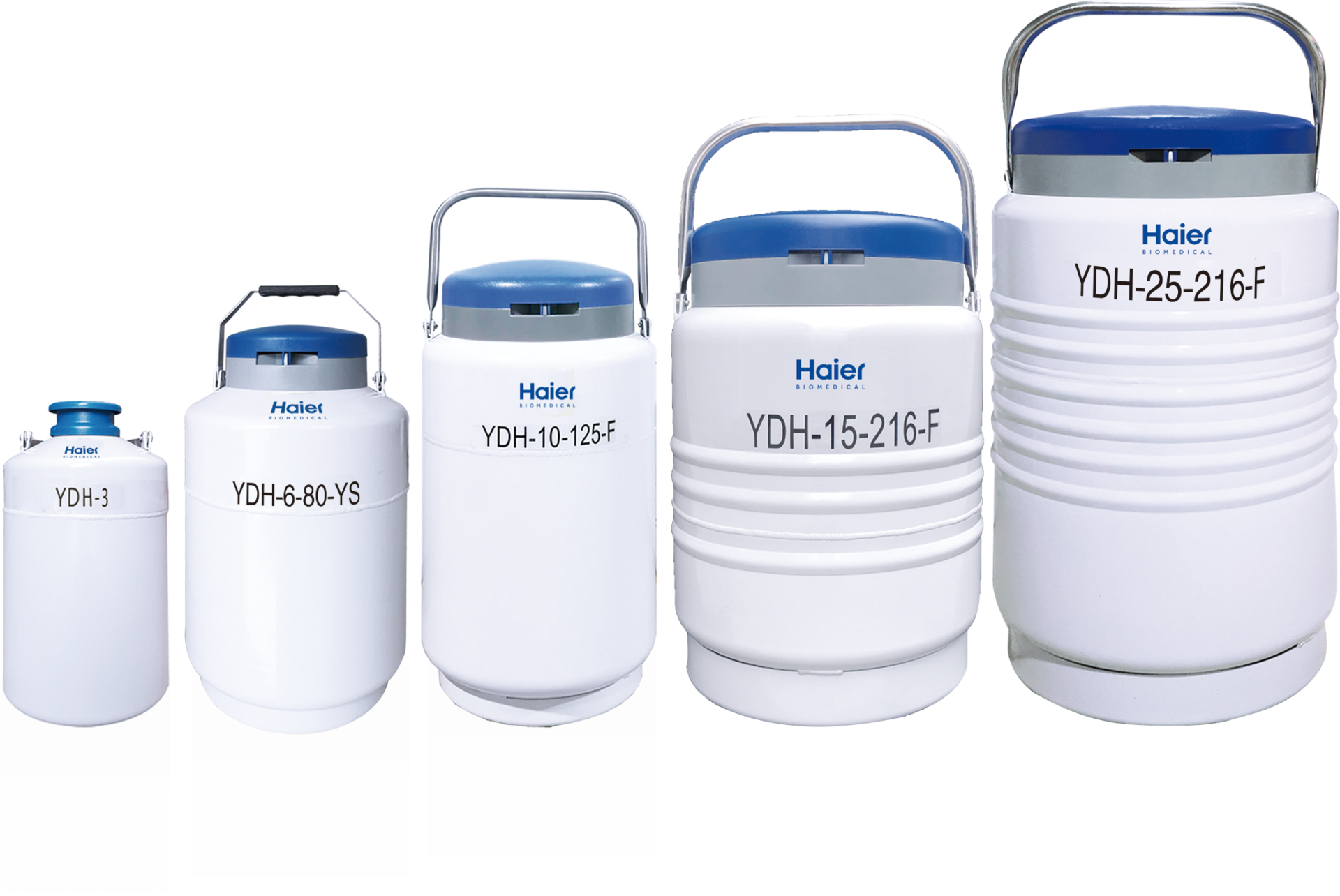

Dry Shipper Series for Transportation

Model
LN2 Volume (L)
Opening Diameter (mm)
Outside Diameter (mm)
Full Weight (Kg)
YDH-3
3
50
223
4.7
YDH-6-80
6
80
300
7.5
YDH-10-125-F
10
125
300
11
YDH-15-216-F
15
216
394
25
YDH-25-216-F
25
216
394
30

Self-Pressurized Series for LN2 Storage and Supply

Model
LN2 Volume (L)
Static Evaporation (L/Day)
LN2 Output (L/Min)
Outside Diameter (mm)
Height (mm)
Full Weight (Kg)
YDS-65-216F
65
0.15
2
329
510
19.1
YDS-95-216-F
95
1.3
4
606
1185
157
YDS-155-216-F
155
3.3
8
857
1459
448
YDS-140-216-F
145
5.5
10
1008
1576
665

Produk Biomedical Lainnya

Info Produk Lainnya? Hubungi Kami

Butuh Haier Biomedical?

Konsultasi Gratis
